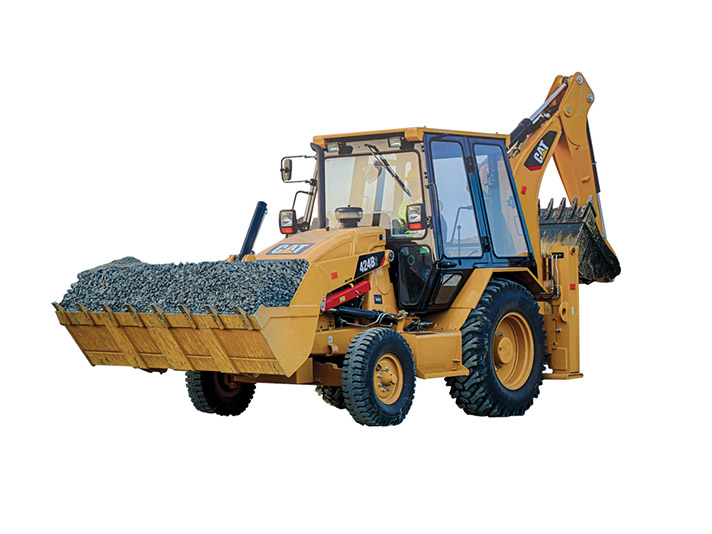

CAT Backhoe Loader 424B2

Cat® Backhoe Loaders are ideal for digging, trenching, backfilling or handling material . Every Cat Backhoe is designed to provide you superior productivity coupled with low owning and operating costs These powerful and versatile machines can be used for many applications that include general construction, demolition and excavation, Landscaping , breaking Asphalt and paving among others.

Due to their smaller frame size and excellent maneoevaribility and versatility, Cat Backhoe Loaders are best suited for areas where using large equipment is not a feasible option.

The new Cat 424B2 backhoe Loader provides superior performance, best in class Hydraulics, outstanding Durability & Reliability ,Easy Maintenance & Serviceability. The new BHL comes with better fuel efficiency, where every drop counts, hence more earning per hour. The machine is designed for more reach and digging depth, better engine and component life, optimum performance at any engine speed.

Cat 424B2 Backhoe Loader is available with Hammer attachments.

Request a Quote

Overview

Cat® Backhoe Loaders are ideal for digging, trenching, backfilling or handling material . Every Cat Backhoe is designed to provide you superior productivity coupled with low owning and operating costs These powerful and versatile machines can be used for many applications that include general construction, demolition and excavation, Landscaping , breaking Asphalt and paving among others.

Due to their smaller frame size and excellent maneoevaribility and versatility, Cat Backhoe Loaders are best suited for areas where using large equipment is not a feasible option.

The new Cat 424B2 backhoe Loader provides superior performance, best in class Hydraulics, outstanding Durability & Reliability ,Easy Maintenance & Serviceability. The new BHL comes with better fuel efficiency, where every drop counts, hence more earning per hour. The machine is designed for more reach and digging depth, better engine and component life, optimum performance at any engine speed.

Cat 424B2 Backhoe Loader is available with Hammer attachments.

Service Refill Capacities

Engine with oil filter
12.0 L
Rear axle including planetary
17.0 L
Transmission
7.0 L
Hydraulic Tank
38.0 L
Cooling System
15.0 L
Fuel Tank
L

PUMP TYPE

Pump Capacity @ 2200 rpm
115 lpm
System Pressure
235 bar L

Bucket

Loader side - Standard or general purpose
1.1 m³

Backhoe Side

Standard Bucket
0.24 m³
High Production
0.27 m³
Trench Bucket
0.12 m³
Soft Soil
0.30 m³

Turning Circle

Outside front wheels
8.7 m
Outside widest loader bucket
11.3 m

Tires

Standard Front
Tubed, 9 x 16 – 16 PR
Standard Rear
Tubed, 16.9 x 28 – 12 PR
Rear (Heavy Duty)
Tubed, 14 x 25 – 20 PR

Engine

Bore
105 mm
Stroke
120 mm
Displacement
4.16 liter
KOEL 4R 1040T – Turbo Charged, Direct Injection, Four Cylinder Engine - Gross Power
57 kW

Engine

KOEL 4R 1040T – Turbo Charged, Direct Injection, Four Cylinder Enginee.

Hydraulic System

Fuel Saving- Load Sensing closed center system.

The Hydraulic System consists of a 38 litre capacity plastic hydraulic tank with a variable displacement pump, closed centre backhoe control valve and loader control valve with steering priority valve and output device cylinders.

Transmission

Cat Power -Shuttle transmission.

The gear ratios are engineered to deliver higher rimpull in 1st and 2nd gear. This ensures better loading and dozing performance.

Steering

Fully hydrostatic equal steering, with double acting double end rod cylinder.
