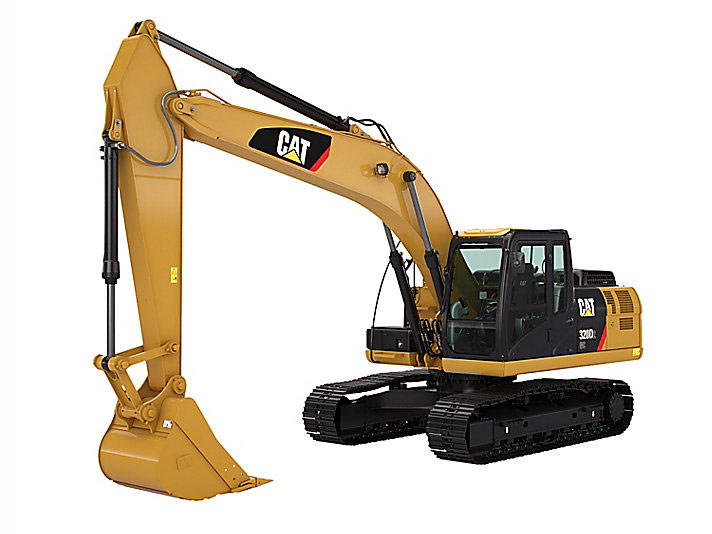

CAT Hydraulic Excavator 320D2

Cat® Excavators are built for performance with increased digging forces, fuel efficiency, enhanced lifting capability, improved controllability and industry-leading cycle times.

Cat 320D/D L Series 2 Hydraulic Excavator incorporates innovations to improve your job site efficiency through low owning and operating costs, excellent performance, and high versatility. Known for excellent swing torque, hydraulic power, controllability, faster cycle times, reliability, lower owning & operating costs, and the best tons per hour productivity in the industry.

Its one machine, but with endless possibilities.

Request a Quote

Overview

Cat® Excavators are built for performance with increased digging forces, fuel efficiency, enhanced lifting capability, improved controllability and industry-leading cycle times.

Cat 320D/D L Series 2 Hydraulic Excavator incorporates innovations to improve your job site efficiency through low owning and operating costs, excellent performance, and high versatility. Known for excellent swing torque, hydraulic power, controllability, faster cycle times, reliability, lower owning & operating costs, and the best tons per hour productivity in the industry.

Its one machine, but with endless possibilities.

Engine

Net Power - SAE J1349
106.0 kW
Bore
105.0 mm
Stroke
135.0 mm
Displacement
7.01 L
Net Power - ISO 14396
112.5 kW
Note
Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator.
Note
The altitude capability (without aid) of 320D2/D2 L is up to 4000 m (13,123 ft) with natural power derate above sea level.
Emissions
The 320D2/D2 L meets Tier 2, Stage II equivalent emission standards.
Note
Power rating at 1,800 rpm.
Engine RPM - Operation
1700.0 rpm
Engine RPM - Travel
1800.0 rpm
Flywheel Power
106.0 kW
Engine Model
Cat C7.1

Hydraulic System

Maximum Pressure - Travel
35.0 MPa
Maximum Pressure - Swing
25.0 MPa
Main System - Maximum Flow (Total)
404.0 L/min
Maximum Pressure - Equipment
35.0 MPa

Weights

Standard Undercarriage - Minimum Operating Weight**
21700.0 kg
Note
**R5.7 (18'8") HD Reach Boom, R2.5 (8'2") B1 HD Reach stick, HD 1.4 m3 (1.83 yd3) bucket and 600 mm (24") shoes.
Long Undercarriage - Maximum Operating Weight*
22300.0 kg
Long Undercarriage - Minimum Operating Weight**
21700.0 kg
Operating Weight*
22300.0 kg
Note
*R5.7 (18'8") HD Reach Boom, R2.9 (9'6") B1 HD Reach stick, HD 1.4 m3 (1.83 yd3) bucket and 790 mm (31") TG shoes.
Standard Undercarriage - Maximum Operating Weight*
21200.0 kg

Standards

Cab/FOGS
SAE J1356 MAR2013. ISO 10262:1998
Brakes
ISO 10265:2008

Service Refill Capacities

Engine Oil
22.0 L
Swing Drive
8.0 L
Final Drive
8.0 L
Hydraulic System (Including Tank)
260.0 L
Hydraulic Tank
138.0 L
Cooling System
25.0 L
Fuel Tank
410.0 L

Drive

Maximum Travel Speed - High
5.4 km/h
Maximum Gradeability
35°/70%
Maximum Drawbar Pull
205.0 kN

Sound Performance

ISO 6395 (External)
102.0 dB(A)
ISO 6396 (Inside Cab)
72.0 dB(A)

Working Ranges: HD Reach Boom 5.7 M (18'8"); R2.9 (9'6") B1 HD Stick

Bucket Tip Radius
1560.0 mm
Maximum Digging Depth
6720.0 mm
Maximum Reach at Ground Line
9890.0 mm
Maximum Loading Height
6490.0 mm

Working Ranges: HD Reach Boom 5.7 M (18'8"); R2.5 (8'2") B1 HD Stick

Bucket Tip Radius
1560.0 mm
Maximum Digging Depth
6300.0 mm
Maximum Reach at Ground Line
9470.0 mm
Maximum Loading Height
6290.0 mm

Working Ranges: Super Long Reach Boom 8.85 M (29'0"); Super Long Reach Stick 6.28 M (20'7")

Bucket Tip Radius
1230.0 mm
Maximum Digging Depth
11880.0 mm
Maximum Reach at Ground Line
15730.0 mm
Maximum Loading Height
11010.0 mm

Swing Mechanism

Swing Torque
71.0 kN·m
Swing Speed
10.9 rpm

Performance

  • The Cat® C7.1 mechanically controlled engine meets U.S. EPA Tier 2 and EU Stage II equivalent emission standards.
  • The low-pressure fuel system allows the engine to be more robust in areas with low-quality fuel.
  • The high-efficiency main pump delivers superior power for best-in-class performance.
  • Economy mode burns less fuel than the previous generation 320D2/D2 L with no loss in lift or dig force.
  • The variable-speed fan with viscous clutch reduces fuel consumption.

Versatility

  • Utility and finishing work are fast and flawless with Cat buckets, thumbs, and compactors.
  • Demolition work is quick and easy with Cat hammers, grapples, shears, and multi-processors.
  • Cat couplers let you swap between attachments in seconds without leaving the cab.
  • See the whole money-making attachment lineup at www.cat.com/attachments.

Safety

  • The hydraulic activation lever safely locks out all hydraulic functions.
  • Anti?skid plating and countersunk bolts reduce slipping in severe conditions and during routine checks.
  • A full-length firewall separates the pump compartment from the engine.
  • A ground-level fuel cutoff switch shuts down the engine in an emergency.

Durability

  • The modified X-frame structure provides long life and durability.
  • Heavy-duty booms and sticks are built for tough work.
  • Greased track link between pins and bushings increases undercarriage life and reduces noise.

Ease of Operation

  • The cab is ergonomically designed with easy-to-operate controls.
  • Multiple seat and joystick adjustment options enhance comfort.
  • Excellent work site visibility from the cab enhances productivity and safety.
  • Optimized low-effort joystick controls reduce operator fatigue.

Maintenance

  • Most service locations can be accessed at ground level.
  • The number of fuel filters are reduced from four to two with 500 hour service intervals to lower operational cost.
  • Filters are grouped together to reduce maintenance time.
  • Pressure taps and S·O·SSM ports help maximize uptime.

Technology

  • Integrated Cat technology solutions increase production and minimize operating costs.
  • Product Link™ reports key information from the machine to any location.
